Embedded Sercos III slave interface

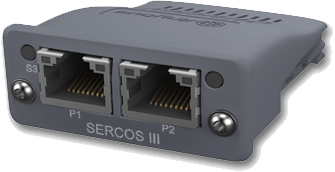

Anybus CompactCom M30 Sercos III plug-in module
The module contains the complete SERCOS III software protocol stack and works as a slave on the network. The functionality of the interface is according the SERCOS FSP IO Profile. The Identity Object can be customized, allowing the end product to appear as a vendor-specific implementation.
In addition, the module supports web functions such as a WebServer for creating Dynamic Webpages which include reading & writing of ADIs and process data, Email sending and FTP for downloading of user webpages. Through the socket interface the module provides the possibility to implement other TCP/UDP protocols using the modules TCP/IP stack.
Forward compatible with M40
The CompactCom 40-series modules support the same APIs as the 30-series Modules. This means, if you are already using or want to combine the Sercos III with 40-series embedded Industrial Ethernet modules, it's possible to support both a mixture of CompactCom 30-series and 40-series modules within your embedded industrial device.
Features and benefits
- A complete, interchangeable communication module with connectors
- Short in-design with free assistance from HMS ensures a fast time to market
- SI pre-certified for network compliance (enables faster network certification)
- Standard application hardware interfaces: 8-bit parallel and serial
Sercos III Slave Interface
- Complete Sercos III Slave implementation
- GDP Basic, SCP_FixCFG and SCP_NRT support
- Ethernet 100 Mbit/s full-duplex with build-in 2-port switch via integrated galvanic isolation
- Built-in web server, FTP server, email client, TCP / UDP socket interface
New applications or designs
Although CompactCom 30 series is fully available and supported by HMS with network updates and maintenance, we recommend the new CompactCom 40 series for new designs, especially for Industrial Ethernet versions.
| Technical specifications | |
| Dimensions (L•B•H) | 52 x 50 x 22 mm 51 x 37 x 16 mm (without housing)} |
| Operating temperature | -40 to +70 °C -40 to +85 °C (without housing) |
| Power requirement | 3.3 VDC, ±0.15 VDC |
| Application Interface | 8-bit parallel UART |
| Profile support | Generic device |
| LED indication | Integrated on front (with housing), via application interface (without housing). Indicates Module Status and Network Status. |
| Connectors | 2x RJ45 |
| >Galvanic isolation | Yes |
| Mechanical rating | IP20, NEMA rating 1 |
| Mounting | PCB mount (hook-on) or mounting clip (without housing), electrical via CompactFlash connector |
| Certifications | CE, CULUS, RoHS |
