Embedded EtherCAT slave interface

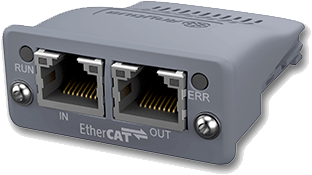

Anybus CompactCom M40 EtherCAT plug-in module
The Anybus CompactCom M40 for EtherCAT is a complete embedded Industrial Ethernet communication plug-in modul which enables your products to communicate on an EtherCAT network. The module acts as a EtherCAT slave interface and supports fast communication speeds, making it suitable also for high-end industrial devices.
Interchangeable with other networks
By implementing the CompactCom concept into your product line, you will have instant embedded access to any other industrial network by simply plugging in another Anybus module .
Get real-time EtherCAT communication
The Anybus CompactCom M40 enables fast communication between your device and the EtherCAT network. The module supports generic device profiles and comes with a dual port switch implemented in the network processor — the award-winning Anybus NP40. With its fast data transfer and very low latency, it's the perfect match for even the most demanding industrial applications.
Features and benefits
- A complete, interchangeable embedded EtherCAT slave interface plug-in module with connectors
- ETG pre-certified for network compliance (enables faster network certification)
- Fast data transfer: Up to 1448 bytes of process data in each direction, Up to 1500 bytes of explicit messaging
- Very low latency <15µs
- Event-based interface method enables easy access to input and output data at any time
- Fast, event-based application hardware interfaces: 8/16-bit parallel and highspeed SPI. I/O (shift register interface) is also available
- IIoT ready: (EoE) Includes Email Client, Web server with customizable content, SSI functionality and FTP server
- Extended flash-based file system with two-disc access (internal and external)
- Transparent Socket Interface handling the complete Ethernet frame (support for 20 socket connections)
- Solid security: Mandatory software signatures prevent unauthorized software to be downloaded to the module. Furthermore, encryption is used to prevent illicit copying
- Short in-design with free assistance from Twincomm and HMS ensures a fast time to market
EtherCAT Slave Interface
- CANopen over EtherCAT (CoE)
- Support for Modular Device Profile
- DS301 compliant
- Network Identity customization
- EMCY support
- Up to 57343 ADIs can be accessed from the network in generic mode
- Up to 16383 ADIs can be accessed form the network when modular device profile is enabled
- Up to 1486 bytes of fast cyclic I/O in each direction
- Support for Sync0 functionality using distributed clocks
- Ethernet over EtherCAT (EoE)
- File access over EtherCAT (FoE)
- Support for process data remap from the network
- Network cycle time down to 100 μs
- Possible to implement DS402 drive profile, Semi device profiles, and other device profiles
- 2x RJ-45 EtherCAT 100 Mbit/s ports available simultaneously
Transparent Ethernet
The optional transparent RMI-interface offers, beside EtherCAT, complete freedom implementing IT functions in an application.- Get full control over IT functionality and IT protocols
- Freedom to create and integrate your own IIoT solutions
- Separates the EtherCAT protocol data from the other Ethernet data
| Technical specifications | |
| Dimensions (L•W•H) | 52 x 50 x 22 mm 51 x 37 x 16 mm (without housing) |
| Operating temperature | -40 to +70 °C -40 to +85 °C (without housing) |
| Power requirements | 3.3 VDC, ±0.15 VDC |
| Application Interface | 8/16-bit parallel (30 ns access) High speed SPI, baudrate configurable up to 20 MHz I/O (shift register interface, cyclical update time 82 μs) UART (for backwards compatibility with 30-series, max 625kbps) |
| Profile support | Generic device |
| Ethernet features | Transparent socket interface Support of HTTP forwarding via socket interface Integrated 2-port switch IT functions (FTP server, E-mail client, web server with JSON and SSI support) |
| Internal file system | Configurable up to 28 MB Two discs are available: One internal (28 MB capacity), and one reserved for accessing the application file system (capacity determined by application) |
| LED indicators | Integrated on front (with housing), via application interface (without housing). Indicates Module Status and Network Status. |
| Connectors | 2x RJ45 100 Mbit/s |
| Galvanic isolation | Yes |
| Mechanical rating | IP20, NEMA rating 1 |
| Mounting | PCB mount (hook-on) or mounting clip (without housing), electrical via CompactFlash connector |
| Certifications | CE, CULUS, RoHS |
Part number(s)
AB6607
Anybus CompactCom M40 EtherCAT RJ45
AB6707
Anybus CompactCom M40 EtherCAT RJ45
without housing
without housing
AB6645
Anybus CompactCom M40 EtherCAT M12
AB6745
Anybus CompactCom M40 EtherCAT M12
without housing
without housing
Transparent Ethernet
AB6638
Anybus CompactCom M40 EtherCAT RJ45
Transparent Ethernet
Transparent Ethernet
AB6738
Anybus CompactCom M40 EtherCAT RJ45
Transparent Ethernet without housing
Transparent Ethernet without housing
Options
SP1137
CompactCom Host Connector
