Anybus X-gateway J1939 - PROFIBUS

Intelligent J1939 to PROFIBUS slave gateway

The Anybus X-gateway J1939 Gateway provides connectivity between a PROFIBUS-network and a J1939 CAN network. The X-gateway appears as a PROFIBUS Slave device allowing a PROFIBUS Master to read or write data from the J1939 network.

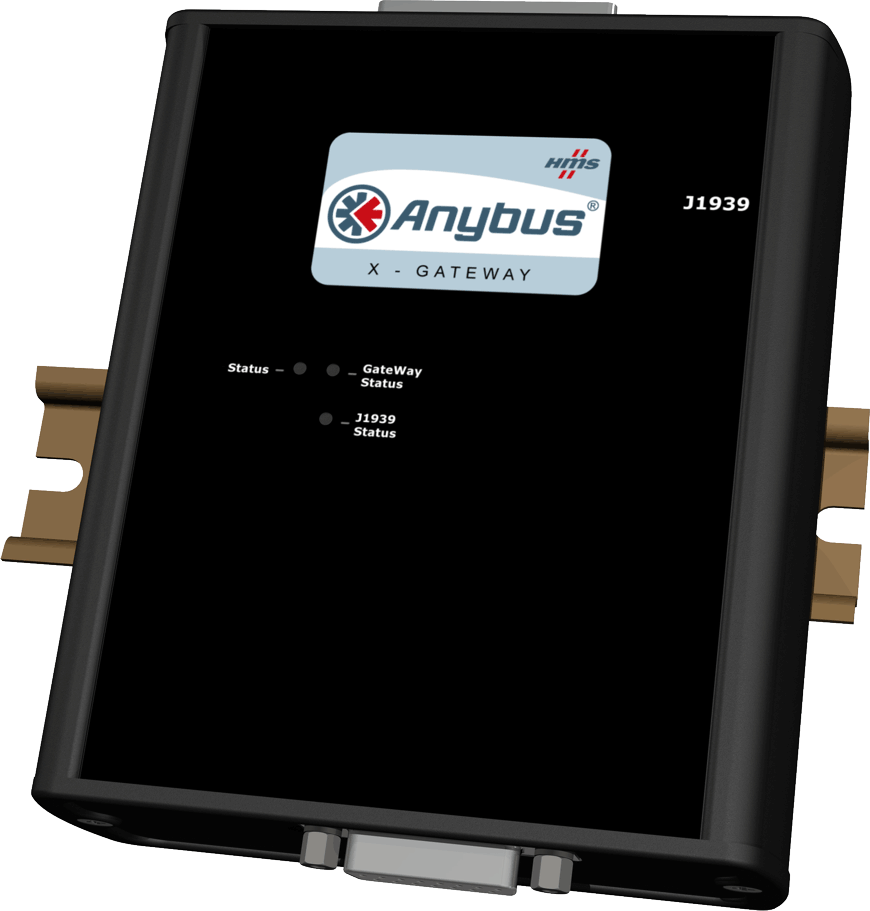

Anybus X-gateway J1939 PROFIBUS Slave

Easy configuration - No programming needed

Togeteher with the X-gateway a free Windows based configuration tool (BWConfig) is provided. This PC based software allows the user to map J1939 parameter (PGN) data into a range of memory addressable through the Anybus X-gateway PROFIBUS interface.

Configuration of the X-gateway is simple using BWConfig and consists of setting up an I/O table containing selected J1939 PGNs and the rate that each will be read or written from the J1939 network. BWConfig will then automatically map the I/O table to a range of addresses accessible from the Anybus X-gateway PROFIBUS interface.
The configuration is downloaded from the PC to the Anybus X-gateway via an RS232 connection and is saved in FLASH memory.

Features and benefits

• Monitor and control data on a J1939 CAN network from a PROFIBUSnetwork
• Typical applications: Heavy Duty Vehicles, Stanionary engines and maritime applications
• Max 500 bytes of I/O data in each direction
• Easy configuration via the included BWConfig Windows Software. No programming required
• Robust aluminum stand-alone housing

J1939 CAN interface

• SAE J1939 network interface with a unique network address in accordance to the J1939-81 specification
• Max 496 bytes of I/O Input data and 492 bytes of I/O Output Data
• Up to 120 PGN's monitored by Input data points
• Up to 100 PGN's  transmitted by Output data points
• Supports J1939 network baud rates of 250K and 500K
• Transmission and reception of all types of fixed-length J1939 messages, including PDU1, PDU2, broadcast and destination specific
• Monitoring of DM1 (active diagnostics) and DM2 (previously active diagnostics) messages
• Complete network address management including address claim, protection, and yield on higher priority conflict
• Network address can be self-configurable over a range of addresses
• J1939 Transport Protocol for transmission and reception of large messages (9 - 1785 bytes). Both connection based (RTS/CTS) and broadcast (BAM) are supported
• Configurable CAN bus-off reset option will reset the network interface and attempt to return to online when a CAN bus-off condition is detected
• 1x 5-pole 5.08 mm Phoenix pluggable screw connector for J1939

PROFIBUS Slave interface

• PROFIBUS Slave settings can be made either via on-board switches, or by importing the provided .GSD file into engineering tool of the controlling PLC.
• Complete PROFIBUS-DP Slave functionality according to extensions of EN 5017
• Baudrate detection up to 9-12Mbit/s
• 400 bytes total combined Input and Output table size including any status data and command registers
• Cyclic I/O data transmission
• Device diagnostic message transmission
• PROFIBUS slave settings via on-board switches or vis .GSD file
• 1x D-sub 9-pin female PROFIBUS connector

Part number(s)

AB7665

Anybus X-gateway J1939 - PROFIBUS
